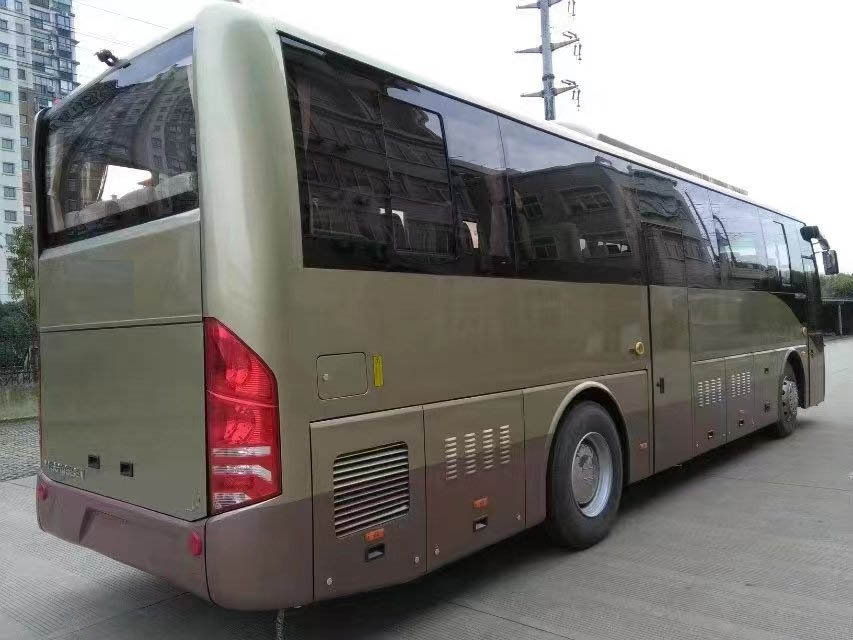

motorcycle type
|
HM6107BEVB
|
|
bodywork
|
Full bearing
|
|
Rated number of passengers
|
45
|
|
outline dimension
|
10490×2500×3400(mm)
|
|
wheel base
|
5450(mm)
|
|
Front suspension / rear suspension
|
2170/2870(mm)
|
|
Maximum total mass
|
16500(kg)
|
|
curb weight
|
10450/10150(kg)
|
|
Drive the motor
|
Model YQSL100-6 / 400 Escape Card
|
|
Rated power / speed / torque 100(Kw)/950(r/min)/1005(N·m)
|
|
Peak power / rotational speed / torque 250(Kw)/2400(r/min)/2750(N·m)
|
|
battery
|
Brand / type / load charge Ningde Times / lithium iron phosphate
|
|
Total power battery capacity: 285(kwh)
|
|
|
|
Single battery 3.2/60(V/Ah)
|
|
Front / rear bridge
|
Dongfeng Dner / Dongfeng Dner
|
|
suspension
|
Front air suspension / Rear air suspension
|
|
braking system
|
Main brake
|
Double-loop full air brake, 4-line safety protection valve, etc
|
|
Front brake form
|
disk；disc
|
|
Rear brake form
|
disk；disc
|
|
ABS
|
Kemi
|
|
tyre
|
11R22.5
|
|
Driving window
|
Inside the hidden window
|
|
side-window
|
Finally row hidden window, the rest of the closed tempered glass
|
|
Passenger door
|
Aluminum alloy front open outside swing type pneumatic door belt remote control
|
|

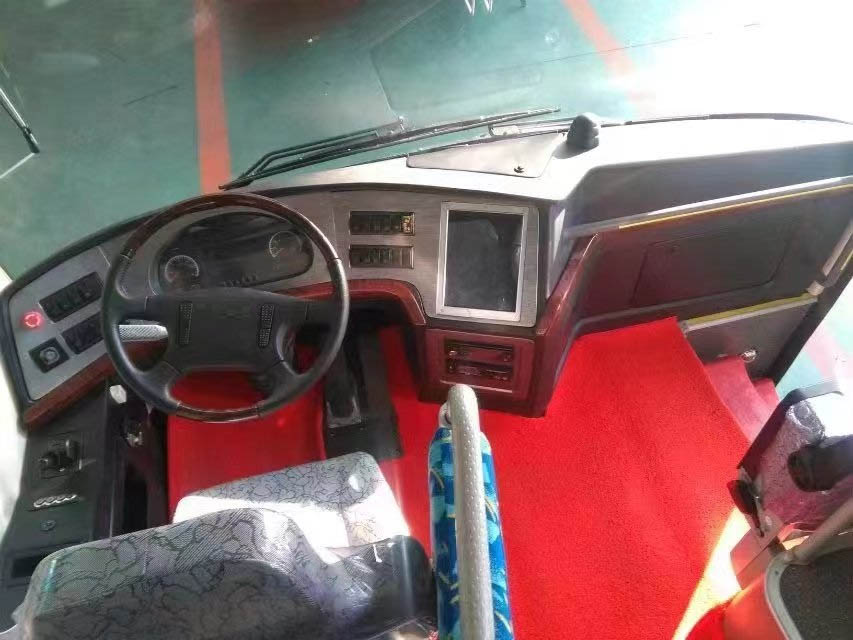

driver's seat
|
High backback is adjustable up and down
|
|

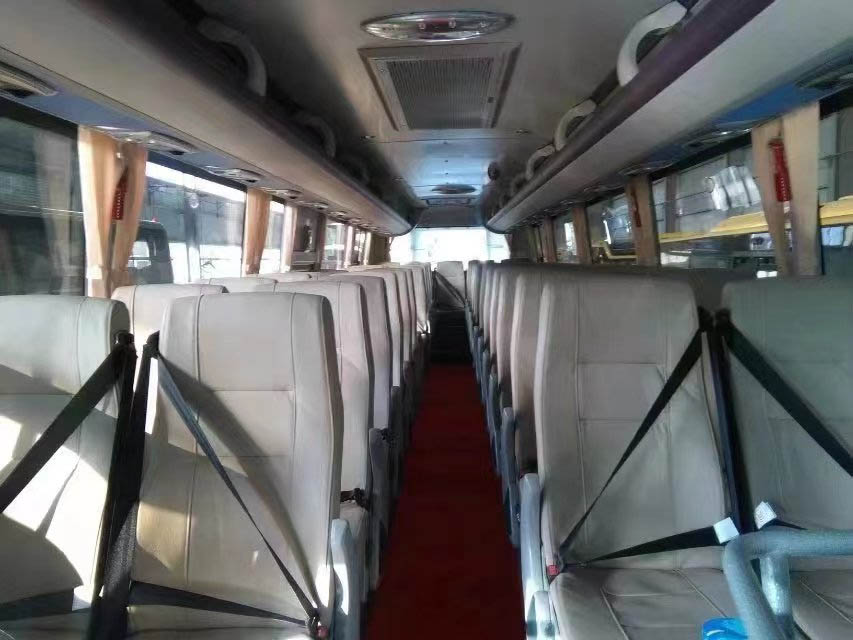

Passenger seat
|
Adjustable in front and rear with armrest
|
|
clearstory
|
Safety sunroof with ventilation fan function
|
|
rack；carrier
|
Bag rack with air-conditioned air air
|
|
Driving recorder
|
ingbo Sherman (with 3-way probe)
|
|
Driving range for one charge
|
260 Km
|
|
apolegamy
|
Independent toilet
|
|
apolegamy
|
air conditioner
|
