Fixed-made scheme for pure electric bus (high-speed)
|
|
Model
|
Bus
|
|
General Vehicle Spec.
|
Overall Dimension(mm)(L×W×H)
|
9000*2100*2570
|
|
Curb Weight(Kg)
|
4200
|
|
Max. Gross Weight(Kg)
|
6000 (Top 2500 / last 3500)
|
|
Wheel Base(mm)
|
4175
|
|
Front/Rear Wheel Track(mm)
|
1570/1645
|
|
Front/Rear Overhang(mm)
|
950/1825
|
|
Max Vehicle Speed（Km/H）≥
|
120
|
|
Range (equipped with range extender)
|
360
|
|
Seat Quantity
|
25+1
|
|
Approach/Departur（°）
|
20/19
|
|
Minimum turning radius（mm）
|
≤14
|
|
First level step height above ground（mm）
|
400
|
|
Power systemSpec.
|
Battery
|
LiFePo
|
|
Battery cells
|
Total power is 71kWh
|
|
Range extender
|
|
|
Charging port
|
Single-gun GB / T / single-port
|
|
Rated / peak power (kw)
|
80/160
|
|
Max Torque(Nm)
|
600/7000
|
|
Low voltage voltage (V)
|
12
|
|
High voltage voltage (V)
|
640
|
|
Type of motor cooling
|
hydrocoolin
|
|
charging interval
|
Fast rush 2 degrees / minute
|
|
Chassis Configuration and Spec.
|
Axle
|
front axle
|
Overall bridge 2.5T, drum brake
|
|
rear axle
|
Overall bridge 3.5T, drum brake, speed ratio 5.875
|
|
Tire
|
Model/Specification
|
215/75R17.5
|
|
QTY
|
6+1
|
|
Suspension
|
Model/Configuration
|
Multiple Leaf Springs; Front/Rear 3/80;
Front&Rear Two - way Shock Absorber
|
|
Brake System
|
Service Brake
|
Front and rear drum hydraulic brakes, hydraulic assisted
|
|
|
Parking Brake
|
Central Drum Type, Soft Shaft Control.
|
|
ABS
|
Optional configuration
|
Domestic production
|
|
Main Bus Body Configurations
|
Passenger Door
|
Electric folding door, Width Of 0.8 m
|
|
|
Driver Door
|
Stamping driver door
|
|
|
Window
|
Sliding Window
|
|

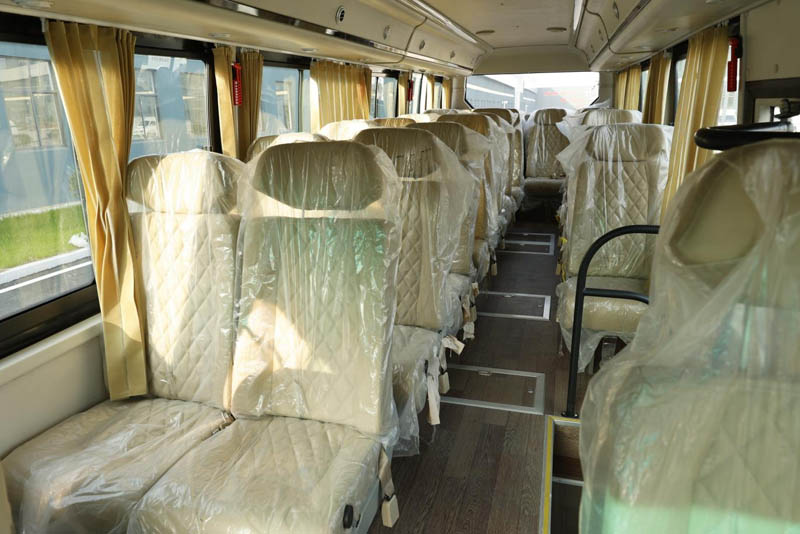

Seat seat (real leather)
|
25 + 1 Seats
|
|
|
Interior Lightning System
|
Inner Roof Lamp
|
|
Audiovisual System
|
TV set
|
|
Independent bathroom
|
|
|
A/C system
|
Overset, cooling capacity of 18,000 kcal / h
|
|
Rear View Mirror
|
Including
|
|
Interior Trim
|
Leather interior
|
|
Floor Leather
|
Decorative Pattern Aluminum Floor Leather.
|
|
Bus Body Paint
|
Customize as needed
|
|
Inner Handrail
|
Including
|
|
Inner Luggage Rack
|
without
|
|
Driving Recorder
|
Simple
|
|
|
Optional Parts
|
Warm air, electronic road signs, tire pressure monitoring, charger, etc
|
