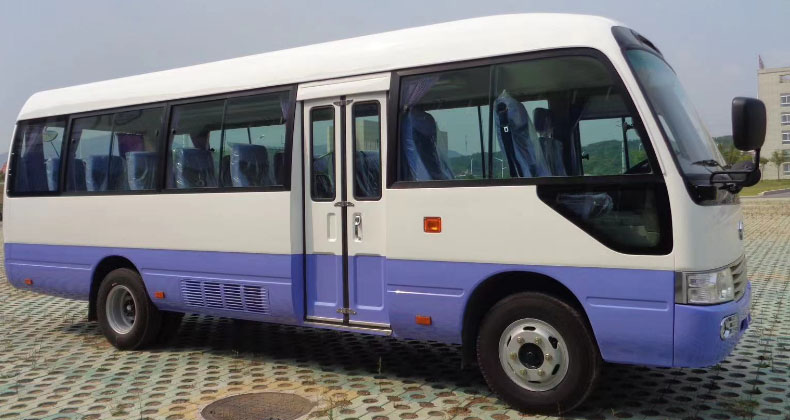

8.4m bus (high speed)
| Fixed-made scheme for pure electric bus (high-speed) | |||
| Model | Bus | ||
| Overall Dimension(mm)(L×W×H) | 8400*2150*2760 | ||
| Curb Weight(Kg) | 5430 | ||
| Max. Gross Weight(Kg) | 9500 | ||
| Wheel Base(mm) | 4475 | ||
| Front/Rear Wheel Track(mm) | 1680/1650 | ||
| Front/Rear Overhang(mm) | 1150/2774 | ||
| Max Vehicle Speed（Km/H）≥ | 120 | ||
| Range (full load) | 220 | ||

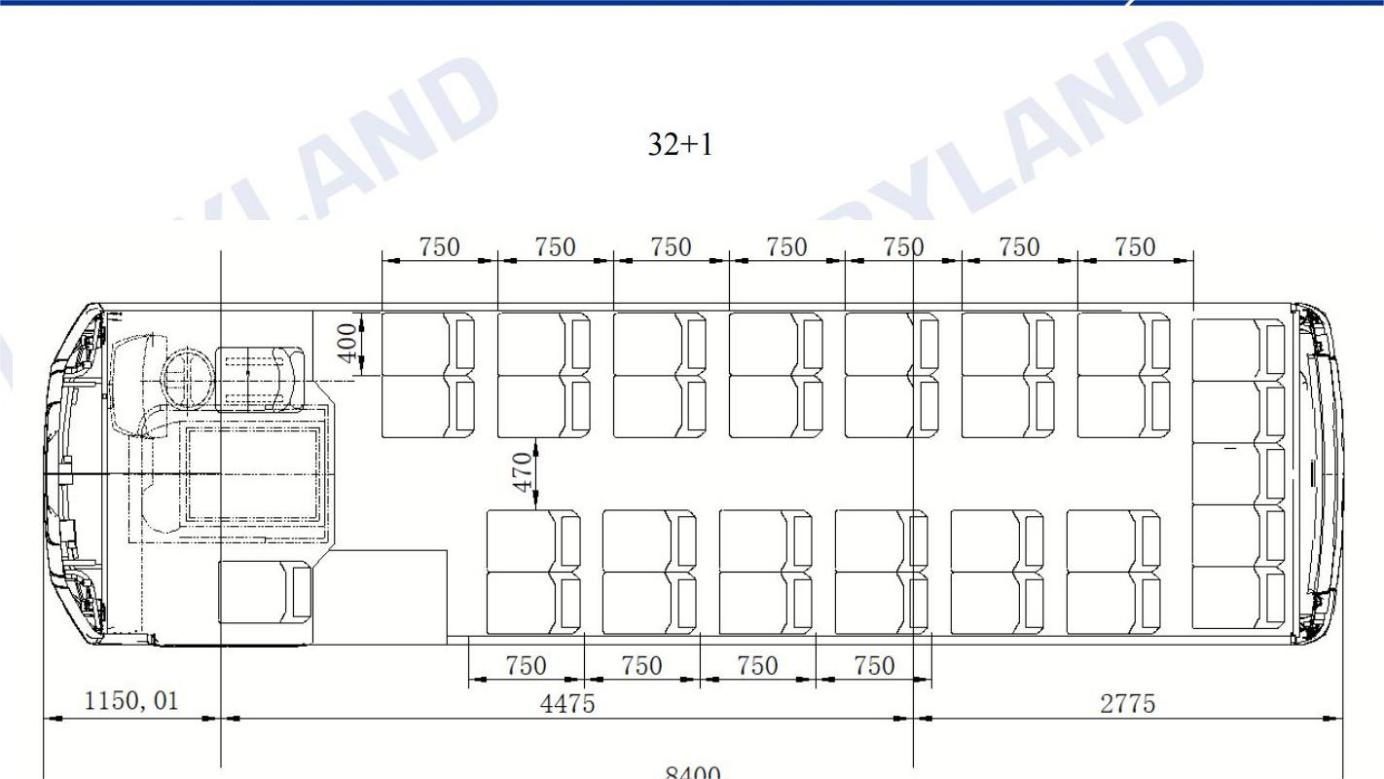

| Seat Quantity | 32+1 | ||
| Approach/Departur（°） | 21/13 | ||
| Minimum turning radius（ mm） | ≤14 | ||
| Secondary step height above ground（ mm） | 400 | ||
| Power systemSpec. | Battery | LiFePo | |
| Battery cells | Total power is 141kWh | ||
| Charging port | Single-gun GB / T / single-port | ||
| Rated / peak power (kw) | 80/160 | ||
| Max Torque(Nm) | 600/7000 | ||
| Low voltage voltage (V) | 12 | ||
| High voltage voltage (V) | 640 | ||
| Type of motor cooling | hydrocoolin | ||
| charging interval | Fast rush 2 degrees / minute | ||
| Chassis Configuration and Spec. | Axle | front axle | Overall bridge 2.5T, drum brake |
| rear axle | Overall bridge 3.5T, drum brake, speed ratio 5.875 | ||
| Tire | Model/Specification | 8.25R20 | |
| QTY | 6+1 | ||
| Suspension | Model/Configuration | Multiple Leaf Springs; Front/Rear 3/80; Front&Rear Two - way Shock Absorber | |
| Brake System | Service Brake | Front and rear drum hydraulic brakes, hydraulic assisted | |
| Parking Brake | Central Drum Type, Soft Shaft Control. | ||
| ABS | Optional configuration | Domestic production | |
| Main Bus Body onfigurations | Passenger Door | Electric folding door, Width Of 0.8 m | |
| Driver Door | Stamping driver door | ||
| Window | Sliding Window | ||
| Seat seat | 32+ 1 Seats | ||
| Interior Lightning System | Inner Roof Lamp | ||
| Audiovisual System | TV set | ||
| Independent bathroom | |||
| A/C system | Overset, cooling capacity of 18,000 kcal / h | ||
| Rear View Mirror | Including | ||
| Interior Trim | common | ||
| Floor Leather | Decorative Pattern Aluminum Floor Leather. | ||
| Bus Body Paint | Customize as needed | ||
| Inner Handrail | Including | ||
| Inner Luggage Rack | without | ||
| Driving Recorder | Simple | ||
| Optional Parts | Warm air, electronic road signs, tire pressure monitoring, charger, etc | ||
