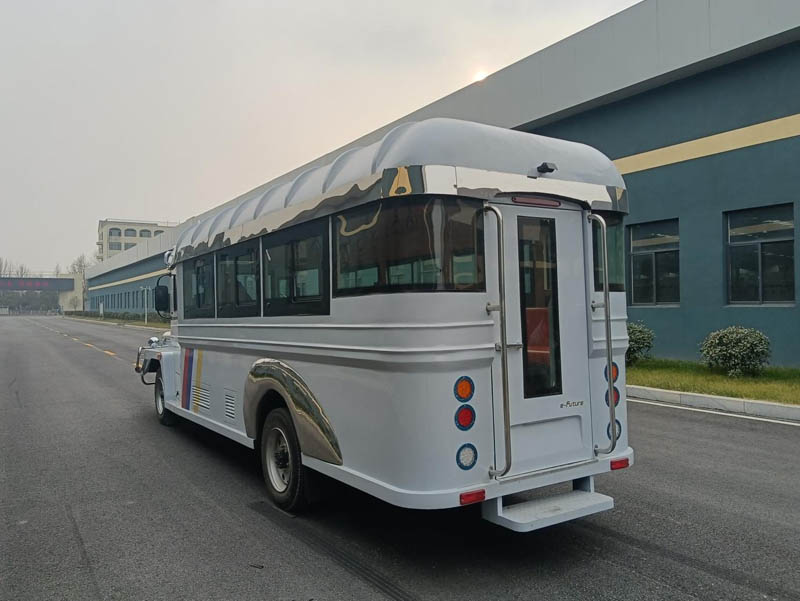

Philippine Market Bus Customized Scheme
|
|
Model
|
Cab-behind Engine Bus
|
|
General Vehicle
Spec.
|
Overall Dimension(mm)(L×W×H)
|
6950*1850*2570
|
|
Curb Weight(Kg)
|
3700
|
|
Max. Gross Weight(Kg)
|
6000（前2500/后3500）
|
|
Wheel Base(mm)
|
4175
|
|
Front/Rear Wheel Track(mm)
|
1470/1545
|
|
Front/Rear Overhang(mm)
|
950/1825
|
|
Max Vehicle Speed（Km/H）≥
|
60
|
|
Seat Quantity
|
22+1
|
|
Approach/Departur（°）
|
20/19
|
|
Minimum turning radius（mm）
|
≤14
|
|
First level step height above ground（mm）
|
400
|
|
Power system Spec.
|
Battery
|
LiFePo
|
|
Battery cells
|
Total electricity consumption 51kWh。
|
|
Charging port
|
Single gun GB/T/single port
|
|
Motor rated power/peak power（kw）
|
60/120
|
|
Max Torque(Nm)
|
600/6000
|
|
Low voltage voltage（V）
|
12
|
|
High voltage voltage（V）
|
540
|
|
Motor cooling type
|
water-cooling
|
|
Charging time
|
Quick charge 2 degrees/minute
|
|
Chassis Confi-
guration
and
Spec.
|
Axle
|
the front axle
|
Integral bridge
2.5T, Drum brake
|
|
rear axle
|
Integral bridge
3.5T, drum brake, speed ratio 5.875
|
|
Tire
|
Model/Specification
|
215/75R17.5
|
|
QTY
|
4+1
|
|
Suspension
|
Model/Configuration
|
Multiple Leaf Springs; Front/Rear 3/80; Front&Rear Two - way Shock Absorber
|
|
Brake System
|
Service Brake
|
Front and rear drum hydraulic brakes, hydraulic assisted
|
|
|
Parking Brake
|
Central Drum Type, Soft Shaft Control.
|
|
ABS
|
Optional configuration
|
domestic
|
|
Main
Bus
Body Confi-
gurations
|
Passenger Door
|
Electric folding door, Width Of 0.8 m
|
|
|
Driver Door
|
Stamping driver door
|
|
|
Window
|
Sliding Window
|
|

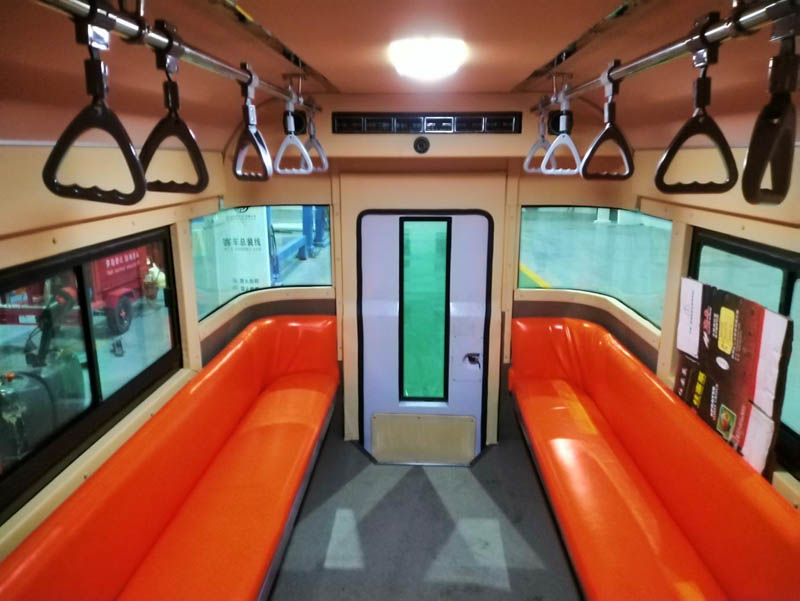

Seat
|
22+1 seats, arranged for opposite seating
|
|
|
Interior Lightning System
|
Inner Roof Lamp
|
|
Audiovisual System
|
Radio
|
|
A/C system
|
Built in, with a cooling capacity of 14000kcal/h (optional)
|
|
Rear View Mirror
|
Including
|
|
Interior Trim
|
Simple Interior Trim
|
|
Floor Leather
|
Decorative Pattern Aluminum Floor Leather.
|
|
Bus Body Paint
|
Customized according to needs
|
|
Inner Handrail
|
Including
|
|
Inner Luggage Rack
|
without
|
|
Driving Recorder
|
Simple
|
|
|
Optional Parts
|
Heating, electronic road signs, tire pressure monitoring systems, etc
|
