Model
|
Cab-behind Engine Bus
|
|
General Vehicle Parameters
|
Overall Dimension(mm)(L×W×H)
|
6970*1880*2550
|
|
Curb Weight(Kg)
|
3400
|
|
Max. Gross Weight(Kg)
|
4995
|
|
Seat Quantity
|
21+1
|
|
Wheel Base(mm)
|
4140
|
|
Front/Rear Wheel Track(mm)
|
1493.5/1620
|
|
Front&Rear Overhang(mm)
|
950/1880
|
|
Approach（°）
|
22.5
|
|
Departure（°）
|
12
|
|
Longitudinal passing radius（mm）
|
5300
|
|
Minimum ground gap（mm）
|
185
|
|
Max Vehicle Speed（Km/H）≥
|
90
|
|
Inner height（mm）
|
1755
|
|
inside width（mm）
|
1800
|
|
Engine Parameters
|
Model
|
4KH1TCG40
|
|
Engine Manufacturer
|
ISUZU
|
|
Emission
|
EuroⅣ
|
|
Rated Power[kw/(PS)]
|
96/3400
|
|
Max Torque(Nm·r/min)
|
290/1500-2200
|
|
Displacement（L）
|
2.999L
|
|
Fuel
|
Diesel
|
|
Chassis Configuration and Parameters
|
Clutch
|
Type
|
Single, Dry Type, Diaphragm Spring
|
|
Driven Disc Diameter
|
φ265 (mm)
|
Steering Machine
|
Model/Type
|
Circular Ball Type, Tooth Fan Steering, with Hydraulic Booster
|
|
Transmission
|
Model/Specification
|
MSB-5N
|
|
Gear Ratio
|
3.992；2.15；1.334；1.000；0.757；Rev-4.22
|
|
Axle
|
Model/Configuration
|
1063B-1 /Non-independent
|
|
Main Reduction Ratio
|
6.143
|
|
Tire
|
Model/Specification
|
7.50R16LT 14PR
|
|
QTY
|
4+1
|
|
Suspension
|
Model/Configuration
|
Multiple Leaf Springs; Front/Rear 3/80; Front&Rear Two - way Shock Absorber
|
|
Brake System
|
Service Brake
|
Oill Brake
|
|
Parking Brake
|
Central Drum Type, Soft Shaft Control.
|
|
Fuel Tank
|
Model/Volume
|
110L
|
|
Endurance Mileage≧
|
|
550Km
|
|
Main Bus Body Configurations
|
Passenger Door
|
Electric folding door, Width of 0.69 m
|
|
Driver Door
|
without driver door
|
|

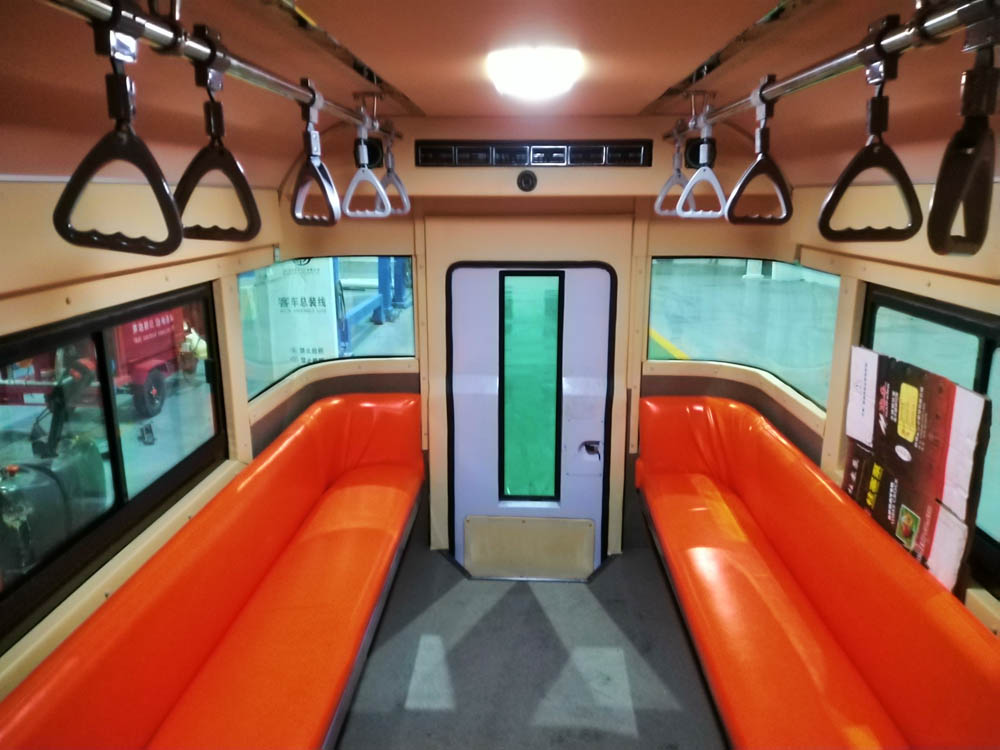

Rear door
|
with rear door， width 80cm
|
|
Window
|
Built-in sliding window
|
|
Seat
|

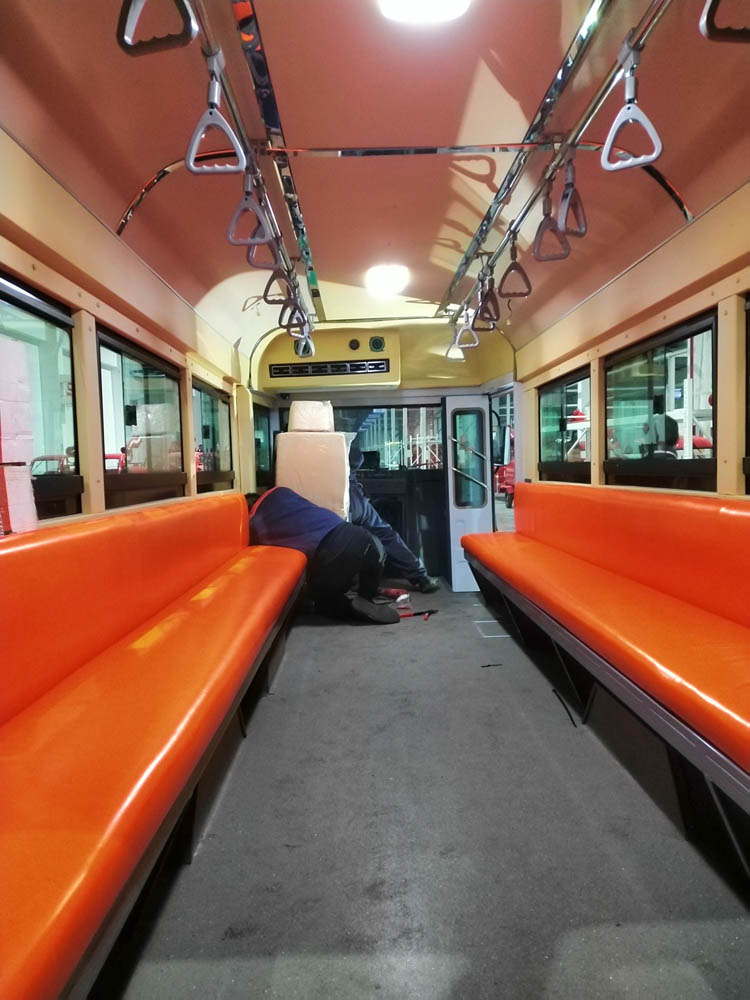

21+1 Seats. Driver seat + long Strip Simple Seat with Backrest on both sides .
|
|
Interior Lightning System
|
Inner Roof Lamp
|
|
Audiovisual System
|
Radio
|
|
A/C system
|
with AC，
|
|
Rear View Mirror
|
Including
|
|
Interior Trim
|
Simple Interior Trim
|
|
Floor Leather
|
Quartz sand floor leather
|
|
Bus Body Paint
|
Gray Painting
|
|
Inner Handrail
|
with
|
|
Inner Luggage Rack
|
without
|
|
Tools
|
With fire extinguisher, belt sleeve, board hand and other tools set.
|
|
Optional Parts
|
1、 Recorder 2、 Car TV
|
