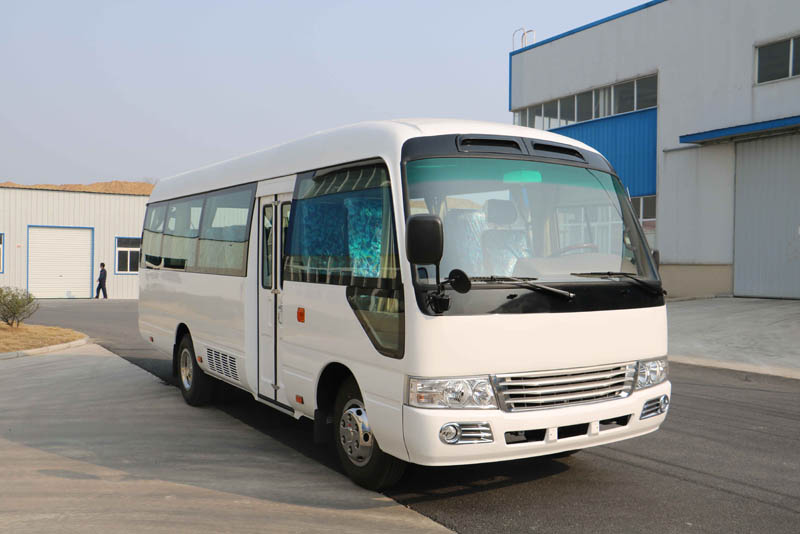

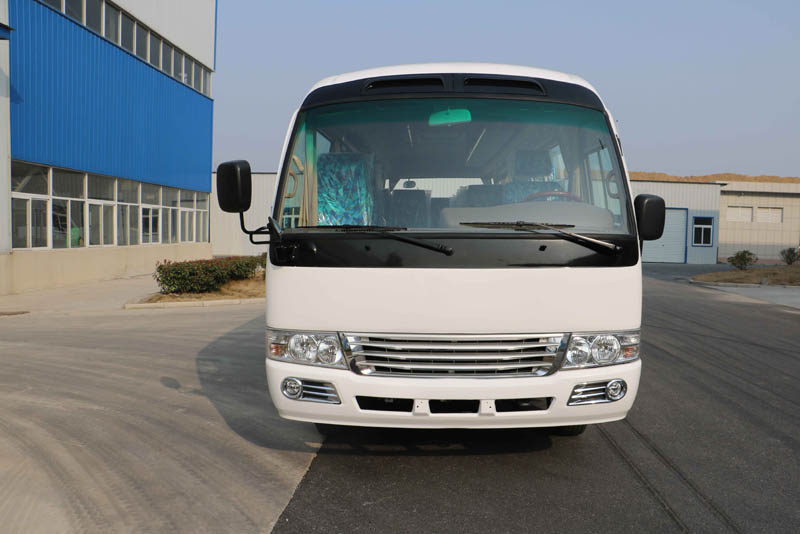

Model No.
|
CHG6730
|
|
Overall parameters
|
Dimension(mm) (L×W×H)
|
7300*2180*2800
|
|
Curb Weight (Kg)
|
6950
|
|
Wheelbase (mm)
|
3800
|
|
Max. Gradability (%)
|
≥30
|
|
Maximum Speed
|
95（km/h）
|
|
Number of seats
|
30+1 seats
|
|
Apporach / Departure Angle (°)
|
18 10
|
|
Fuel Consumption
|
≤16 (L/100Km)
|
|
Engine Specs
|
Engine Code
|
ISF3.8S3154
|
|
Engine Brand
|
Foton Cummins
|
|
Engine Position
|
Front
|
|
Rated power[kw/(PS)]
|
115/156
|
|
Emission Standard
|
EURO Ⅲ
|
|
Displacement (L)
|
3.76L
|
|
Fuel type
|
Diesel
|
|
Fuel System
|
110L
|
|
Chassis Specs
|
ABS
|
Domestic
|
|
Body Structure
|
Semi - Monocoque
|
|
Front/Rear Axle
|
Non-independent
|
|
Steering Wheel
|
Left drive
|
|
Gear Box
|
651B WANLIYANG transmission
|
|
Tire
|
Single Front, Double Back with Capital Logo and Other Specified Prints.
|
|
suspension
|
Multi layered leaf spring with shock absorber. Leaf suspension, front 3 pieces and rear 4 pieces
|
|
Clutch
|
φ350*φ220 diaphragm spring
|
|
Steering System
|
Hydraulic pressure power steering
|
|
Brake System
|
Running Brake: air pressure dual-circuit brake, Parking Brake:Energy storage spring brake
|
|
Bus Body
|
passenger door
|
one passenger door, Middle position pneumatic controlled folding door
|
|
Driver Door
|
one Driver door, front position
|
|
Interior lighting
|
Integral headlamp ，roof lamp，side marker lamp , tail lamp, high brake light
|
|
Rear-view mirror
|
Manual rearview mirror
|
|
Audio Visual System
|
Radio with MP3
|
|
Trial listening system
|
|
Air Conditioner
|
Built-in A/C, Janpan Tech， Capacity: 14000 Kcal
|
|
Interior Decoratioin
|
sunshade shade, side foldable curtain
|
|
Driver's sunshade, side foldable curtains
|
|
SSeats
|

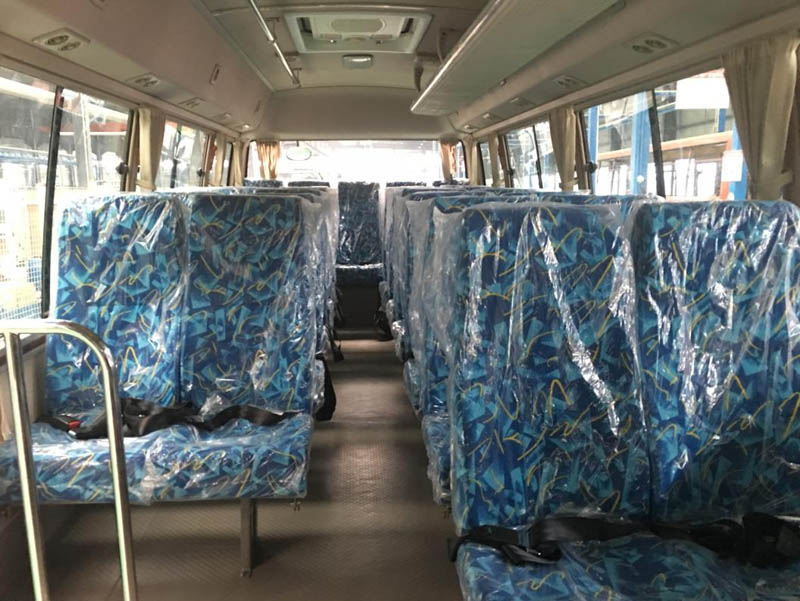

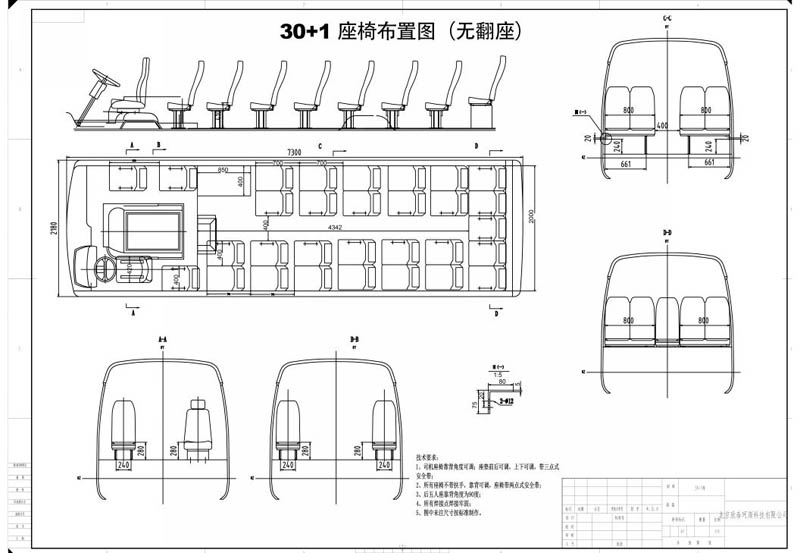

30+1 seats ,2+2 arrangement
|
|
Passenger Seats
|
Adjustable passenger seats with hand rails , Seat Color: cotton cloth or PVC
|
|
Window
|
Sliding window, with curtains.
|
|

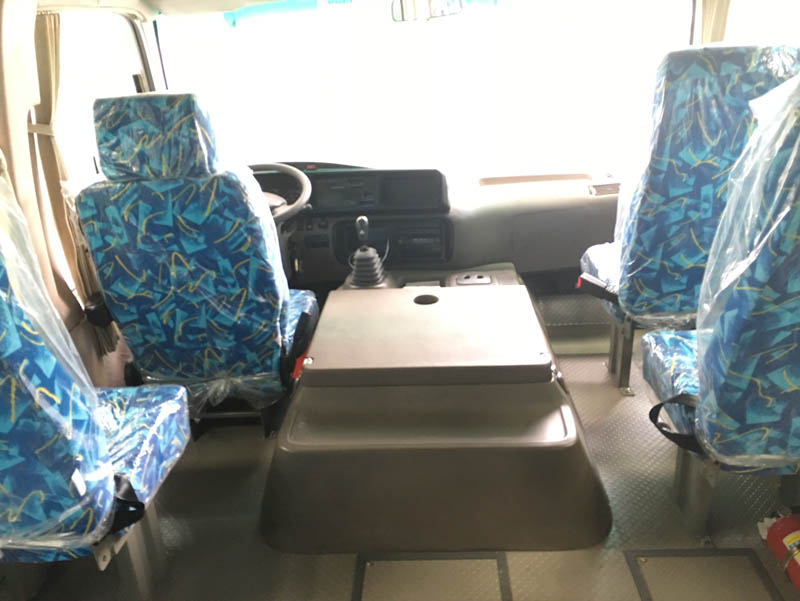

Driver Area
|
High seat back,adjustable,3 point type safety belt(with driver’s fan and sunshade)
|
|
LuggageRack
|
Interior luggage rack on left side, Single side luggage rack, single side handrail
|
|
The luggage rack is located on the left side, with one side luggage rack and one side armrest
|
|
Others
|
Normal Painting,Left， left side luggage rack and right side handrail, 4pcs safety hammers, digital clock,Running water throughs,2pc fireextinguisher
|
