ZZ6116H3Q HOWO BUS
| General Data | Overall length (mm) | 10990 | Engine | Model | MC07.28-30 |
| Overall width (mm) | 2500 | Maker | SINOTRUK | ||
| Overall height (mm) | 3570 | Engine location / fuel | At rear/ diesel | ||
| Axle distance (mm) | 5550 | Engine type | 6-cylinder in-line with water cooling, turbo-charging and intercooling | ||
| Front / Rear overhang (mm) | 2290/3150 | Rated output (kw/rpm) | 206/2300 | ||
| Angle of approach / departure (º) | 8/8 | Maximum torque (N.m) | 1100/1200-1800 | ||
| First step (mm) | ≤380 | Displacement (ml) | 6870 | ||
| G.V.W (kg) | 16900 | Bore×stroke(mm) | 108×125 | ||
| Rated seats | 24-50 | Emission standard | Euro Ⅲ | ||
| Max. driving speed (km/h) | 100 | Luggage cabin volume（m3） | 6.2 |
| Item | Basic configuration | Optional configuration | ||
| Chassis | Engine | MC07.28-30 | □MC07.31-30 | |
| Clutch | Diaphragm-spring clutch, Ø430mm | |||
| Gearbox | 6-speedmanualgearbox | |||
| Front axle | 6T, disc brake,brake shoes swear alarm | |||
| Rear axle | 11T, drum brake | |||
| Suspension | Leaf spring | □ Air suspension | ||
| Steering | ZF integral power steering gear | |||
| Brakes | Air controlled dual-cycle service brakes, energy storage spring parking brakes, ABS, 150A alternator |
□ Electric eddy-current retarder □50A×2 alternator |
||
| Tyre | 11R22.5 | Qty.：7 |
□ Aluminum alloy wheel □ Wheel cover |
|
| Other | Oil-water separator, air dryer, clutch booster,automatic slack adjuster, brake shoes wear alarm device,three speed electromagnetic clutch, 260L oil tank |
□ Centralized lubricating system □ 400L oil tank |
||
| Item | Basic configuration | Optional configuration | |
| Electric appliance | Battery | 180A.H×2 | □195A.H×2 |
| Instrument | CAN instrument | □ VITI CAN instrument | |
| Wiper | Opposed wiper (with washers) | ||
| Audio-visual system | MP3 |
□ Hard disc player, 19’’ fixed displayer (one) □ 19’’ fixed displayer nearthe middle door (one) □ Wireless microphone |
|
| Security monitoring system | None |
□ Reversing and getting off monitor system □ Reversing buzzer(+RMB 500) □ Data recorder |
|
| Air conditioner | Driver fan | □ Engine-driven A/C28000Kcal/h+ A/C interior +double luggage rack | |
| Warming system | Water pump + defroster | ||
| Other | Automatic fire extinguisher for the engine and battery cabin, electric clock, USB interface for driver |
□ Air horn □ Rear windshield broken appliance □ Front number plate(nine words) □ Alarm for not wearing seat belts |
|
| Item | Basic configuration | Optional configuration | |
| Body | Frame | Integral body, four steps, concave floor | |
| Interiortrim | Molding interior trim, front and rear lamps, reading lamp of the driver side, three top lamps |
□ Step lamps □ Double connecting top lamps □ A/C interior □ Double luggage rack □ Luggage rack with cover |
|
| Doors | Front and middle swing-out door, aluminum swing luggage cabin doors, emergency valve |
□ Left emergency door □ Translational luggage cabin doors |
|
| Windows / windscreen | Laminated front windshield, tempered rear windshield,closedside windows (sliding-type of the last two windows) |
□ Electric driver window □ Two emergency windows of both sides |
|
| Rear-view system | Manual rear-view mirror, inside mirror | ||
| Seats | Luxury driver seat, high back adjustable passenger seats (withseat belts), passenger fence |
□Driver seat with airbags shock absorber □ with net, cup holder, sidesway and footrest □ 49+1 (without middle door) |
|
| Paint | Plain paint | □ Metallic paint | |
| Other | Sun visor, side window curtains, rear window curtain, electric clock, two top scuttles, safety hammer, 4KG fire extinguisher (two), two parking wedge, triangle warning sign, bamboo floor, anti-wear floor cover |
□ Quartz sand floor cover □ PVC floor □ Drinking fountain |
|

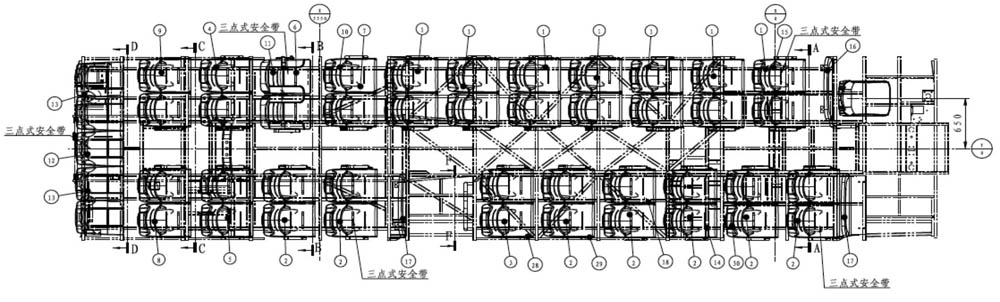

Seats arrangement(47+1):
|
|
|
|
