7m Diesel bus with Isuzu Chassis (3815mm Wheelbase)
| Vehicle parameters | Engine | ||
| Overall dimensions(mm)（L*W*H） | 6970*2018*2585 | Model | 4KH1-TCG40 |
| Curb weight (Kg) | 4132 | Manufacturer | ISUZU |
| Max. gross weight(Kg) | 5950 | Emission standard | Euro IV |
| Wheelbase(mm) | 3815 | kW/（r/min） | 88/2900 |
| Front/rear wheel track(mm) | 1504 /1525 | N.m/（r/min） | 290/1500 |
| Front/rear overhang (mm) | 1015 / 1815 | Displacement (L) | 2.99 |
| Min.turning diameter (m) | ≤15.2 | Fuel | Diesel |
| Min. ground clearance (㎜) | ≥190 | ||
| Approach/departure(°) | 24 / 14 | ||
| Max. speed(km) | 115 | ||
| Chassis | |||
| Clutch | Model | 850 | |
| Manufacturer | Φ325mm Single piece, dry type, diaphragm spring | ||

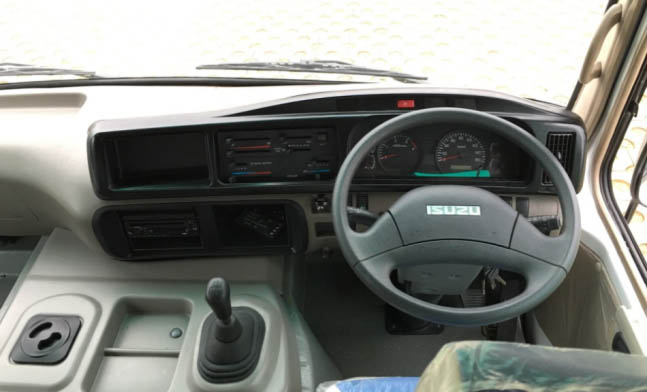

| Steering machine | Model/type | 803，803，326033L，Circulating ball type | |
| Transmission | Model | MSB | |
| Gear ratio | 5.016; 2.524; 1.489; 1.000; 0.713; R:4.783 | ||
| Axle | Model/Configuration | front axle：3000010-861 ，Doppel-T-Profil, fist type. rear axle：2400010-861/A， integral | |
| Main reduction ratio | 6.142 | ||
| Tire | Model/Specification | 7.00R16 ，14PR | |
| Suspension | Model/Configuration | Frong & Rear leaf spring | |
| Brake system | Service | hydraulic,double circuit,drum brake | |
| Parking | Central drum brake | ||
| Fuel tank | Model/Capacity | 100L | |
| Vehicle body | |||
| Passenger door | electromotion foldable door | ||
| Window |
tempered glass,push-pull structure, front is plyglass glass，rear is widen tempered glass，with foldable curtain Side Window Color is F Green |
||
| Seat |
Driver seat: large seat; adjustable back, front&rear can be adjustable, with 3-point belt. Passenger seat: adjustable back, simple handrail, with 2-point belt Color&Fabric: Blue&white inlay, PVC 。 seat height : 450mm, seat width: 400 mm |
||
| Inside lighting | Whole head lamp, Ceiling light,side marker lamp , tail lamp | ||
| Audio-visual system | Radio With CD Function | ||
| AC | non-independent 14000 Kcal | ||
| Rear-view mirror | exterior mirror | ||
| Interior decoration |

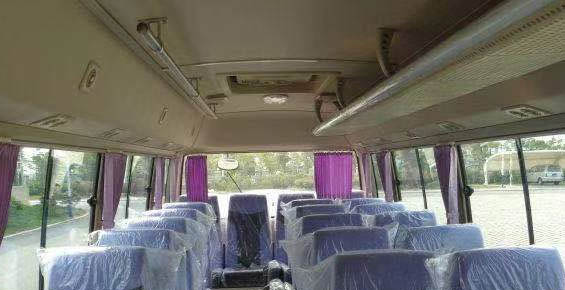

Common A/C Interior, beige Color standard configuration, Similar Coaster Dome Light 2pcs, 1pc Simple Skylight Single side luggage rack, Single side handrail |
||
| Floor | The upper is covered by bamboo plywood, Quartz sand abrasion resistant floor leather | ||
| Body painting | Ordinary paint, made in China | ||
| Luggage rack | Single side luggage rack, Single side handrail | ||
| Other accessories | Rear luggage chamber,Wiper, stainless steel tube guardrail, digital clock, Safety skylight, 2 hammers, 2Kg fire extinguisher | ||
|
|
